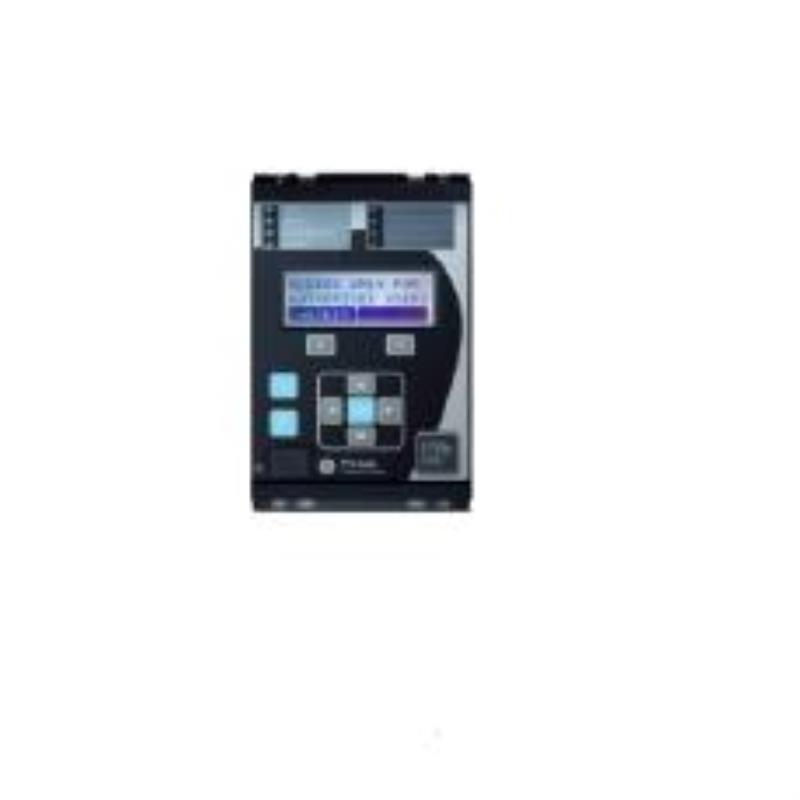

Alstom P40 Agile P14NZ Modbus Numerical Feeder Protection relay (W:102.4mm X H:177.0mm D:185.6mm)

Visit the ALSTOM Store

SKU : P40-Agile-P14NZ11A2B0

Mfr Part No. : P14NZ11A2B0

HSN Code : 8536

Add to

The P14N non-directional feeder, P14D directional feeder and P94V voltage and frequency IEDs bring the design rigour and technology of transmission applications to the entire utility and industrial market.

Ge Link : https://store.gegridsolutions.com/ViewProduct.aspx?Model=P14NZ

ANSI CODES	20TE CASE DIMENSIONS
50,51,50N,51N,68,46,46BC,49,CBCF,86,64R,80,79	(W: 102.4mm H: 177.0mm D: 185.6mm)

For any Alstom/ Ge Inquiry Relay

Please contact or What's up : +91-9717005541

Mail id : powerfactorshop@gmail.com

Best Price Guaranteed

Click to Download for P14N

Agile P14N
- Agile P14N

Agile P14N

P40 Agile Feeder Management

The P14N non-directional feeder and frequency IEDs bring the design rigour and technology of transmission applications to the entire utility and industrial market. The footprints of both the device physical size and the lifecycle environmental impact have been minimised using state-of-the-art design, component, and process selection. Agile solutions from GE are ideal for new-build and retrofit alike.

Agility and Versatility

MiCOM P40 Agile IEDs provide an integrated solution for the complete protection, control and monitoring of electrical power systems. Application for overhead lines, underground cables, busbars, breakers, transformers, reactors and distributed generation is supported, right from distribution (as primary protection) to transmission voltage levels (as back-up). The IEDs are suitable for a wide variety of applications in solidly-earthed, resistance-earthed and Petersen coil systems alike.

Key Benefits

Comprehensive current, voltage, power and frequency protection
Multi-stage independent protection elements
Two stage circuit breaker failure and breaker condition monitoring
Switchgear supervision including CT/VT, DC supply, full trip circuit supervision
Support for multiple industry standard communication protocols including IEC 61850
Compact, withdrawable design with 4”, 6”, and 8” case sizes for reduced space applications
