Alstom Numerical Feeder Protection relay Agile P154 Digital Input 48-60 V DC/AC

(ALSTOM Agile P154 (Protocol Available:- Modbus / IEC103 / DNP3))

SKU Code : Feeder-P50-P154211A1A0

Mfr Part No. : P154211A1A0

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Numerical Protection
  • Protection Type Feeder Protection
  • Protocol Modbus / IEC103 / DNP 3
  • AC\DC Operated Auxillary supply AC/DC

Best Price Guaranteed

The Agile P154 relay provides non directional overcurrent and earth fault for MV/LV and HV backup feeder protection.

Ge Link : https://store.gegridsolutions.com/ViewProduct.aspx?Model=P154

ANSI CODES CASE DIMENSIONS
50 , 51 , 50N , 51N , 46 , 49 , 50 BF , 64R , 86 , 95, 68, 37, 46BC, CLP (W: 125.0 mm      H: 105.0mm     D: 175.5mm)

For any Alstom/ Ge Inquiry Relay

Please contact or What's up : +91-9717005541

Mail id : [email protected]

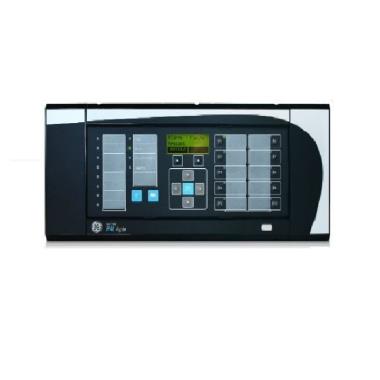

MiCOM Agile P154

Feeder Protection

The MiCOM Agile P154 relay provides non directional overcurrent and earth fault for MV/LV and HV backup feeder protection. The relay features a wide range of measurement, protection and monitoring functions and is easily customizable using programmable BI/BO/LEDs/AND logic. The P154 is economical, designed for deployment in volume in lower voltage systems, as a backup relay in HV systems, or as direct refurbishment of non-communicating overcurrent relays.

The principal protection functions are timed and instantaneous phase and earth fault protection, with up to 3 independent stages available. Additional versatility is provided through negative sequence overcurrent, thermal overload, cold load pickup, inrush blocking, broken conductor, breaker fail, restricted earth fault, undercurrent/loss of load, and trip circuit supervision functions. The hardware capability is broadened by a sensitive earth fault CT option, and a universal auxiliary power supply range to permit standardization in procurement and inventories.

Key Benefits:

  • Optimized protection for feeder applications
  • Cost effective
  • Measurement, protection and monitoring in one box
  • Front USB port for local communication
  • Flexible SCADA communication options
  • Diagnostics/maintenance facilities
  • Universal, wide-range auxiliary supply
  • Password protection for security
  • Extensive self-supervision and internal diagnostics
  • Numerical Protection

  • Feeder Protection

  • Modbus / IEC103 / DNP 3

  • Auxillary supply AC/DC
