* The original products may vary from the picture

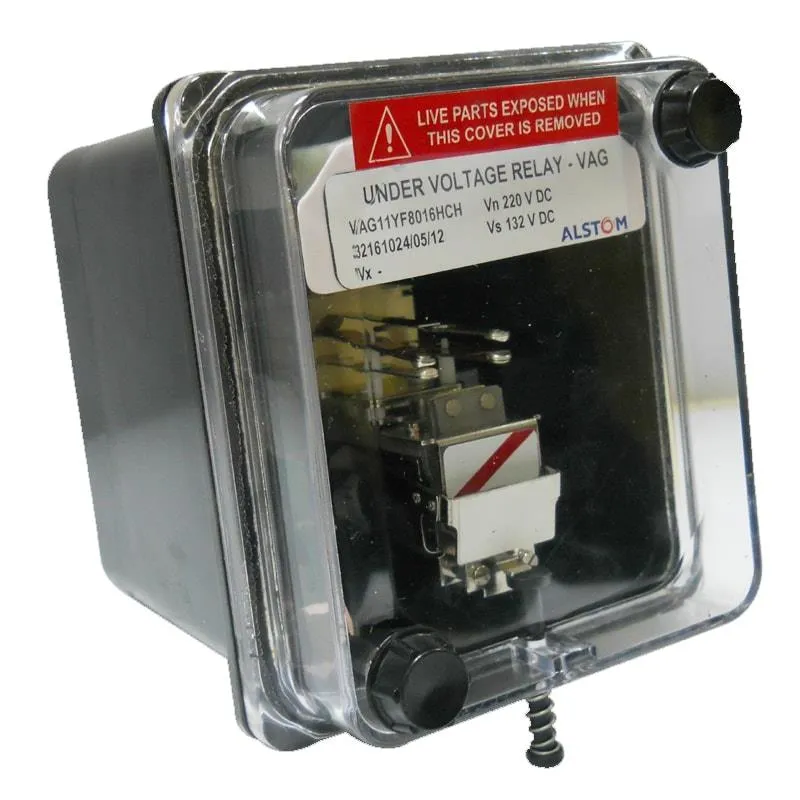

Alstom Voltage Protection relay VAG11YF8022CCH
Visit the GE VERNOVA - ALSTOM Store
SKU : 415V-VAG11YF8022CCH
Mfr Part No. : VAG11YF8022CCH
HSN Code : 8536
GBVAG11YF8022CCH
INST OVER VOLTAGE RELAY WITH FIXED SETT
| Technical specification | |
| Relay model no | VAG11YF8022C(M) |
| Relay type | VAG11(O/V) |
| Case size | 1/4N V 10T |
| VOLTAGE/CURRENT NOMINAL | 415V AC |
| Contacts (S/R OR H/R) | 1 N/O 1 N/C S/R |
| O/C OR O/V SETTING | 110% |
| External Resistor | |
| Flag | STANDARD FOR O/V |
| Mounting | Flush |
| Name plate | RFB9067-005 |
| Outline drawing | MFM015 |
| Wiring diagram | MADZ 075-7 |
|
Cut out Dimension (in mm.) ( H x W x D) |
109 X 97 X 115 |
Electro Mechanical Relay
