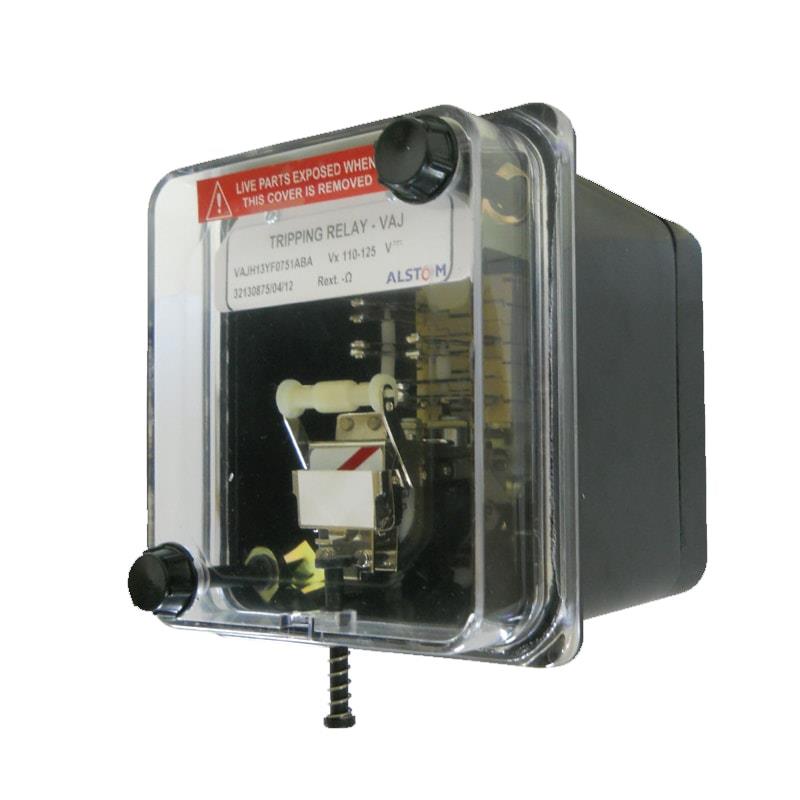

Alstom Tripping relays VAJH13YF1001ABA

SKU Code : vajh13YF1001ABA

Mfr Part No. : VAJH13YF1001ABA

HSN Code: : 8536

Brand : ALSTOM

Categories : Electro Mechanical Relay

Technical Specification

Type Electro Mechanical Relay
Protection Type Tripping relays

GBVAJH13YF1001ABA

SINGLE POLE HIGHSPEED TRIPPING RELAY

Technical Specifications

Model No : VAJH13YF1001ABA

VAJH13

AUX. CURRENT OR VOLTAGE - 220 / 250V DC

BURDEN - LOW

CASE SIZE - 1/4N V 10T

CONTACTS (S/R OR H/R) - 3 N/O 1 N/C H/R

FLAG - YES

MOUNTING - FLUSH

Name Plate RFB9067 003

Outline Diagram MFM015

Wiring Diagram 01VAJH13YF 001

Cut Out Dimension(in mm)-(H X W X D) 116x145x130
