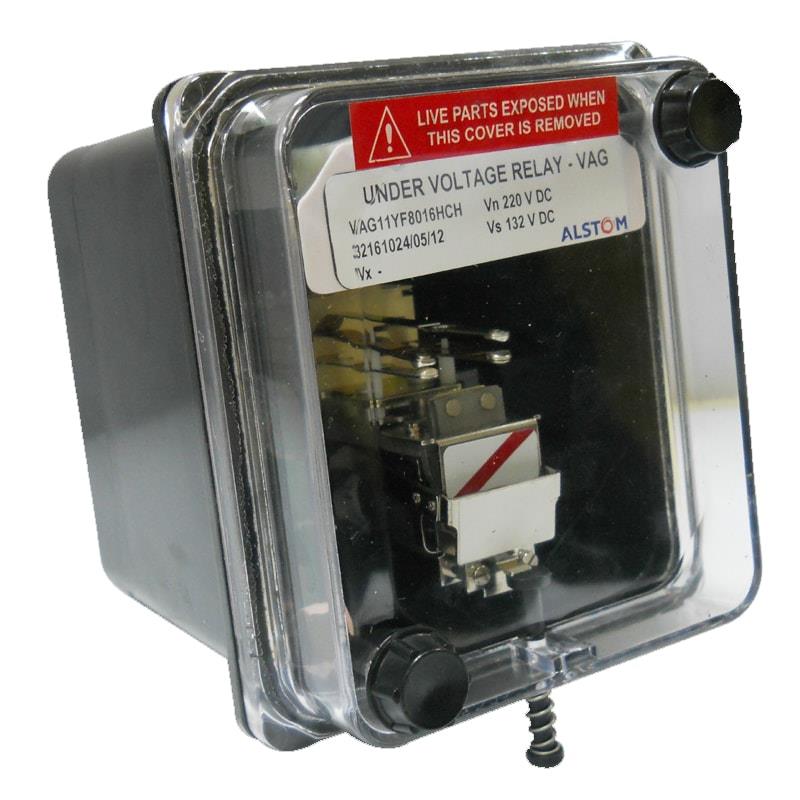

* The original products may vary from the picture
Alstom Voltage Protection relay VAG11YF8008CCH
Visit the GE VERNOVA - ALSTOM Store
SKU : VAG11YF8008CCH
Mfr Part No. : VAG11YF8008CCH
HSN Code : 8536
GBVAG11YF8008CCH
INST OVER VOLTAGE RELAY WITH FIXED SETTING
| Technical specification | |
| Relay model no | VAG11YF8008CCH |
| Relay type | VAG 11 |
| Case size | 1/4N V 10T |
| Application | O/V (110%) |
| VOLTAGE/CURRENT NOMINAL | 110V AC |
| Pick up voltage | 121V ac |
| Frequency | 50 Hz |
| Contacts (S/R OR H/R) | 1 N/O 1 N/C S/R |
| Flag | Yes |
| Mounting | Flush |
| Name plate | RFB9067-005 |
| Outline drawing | MFM 015 |
| Wiring diagram | MADZ 075.3 |
|
Cut out Dimension (in mm.) ( H x W x D) |
109 X 97 X 115 |
Electro Mechanical Relay
