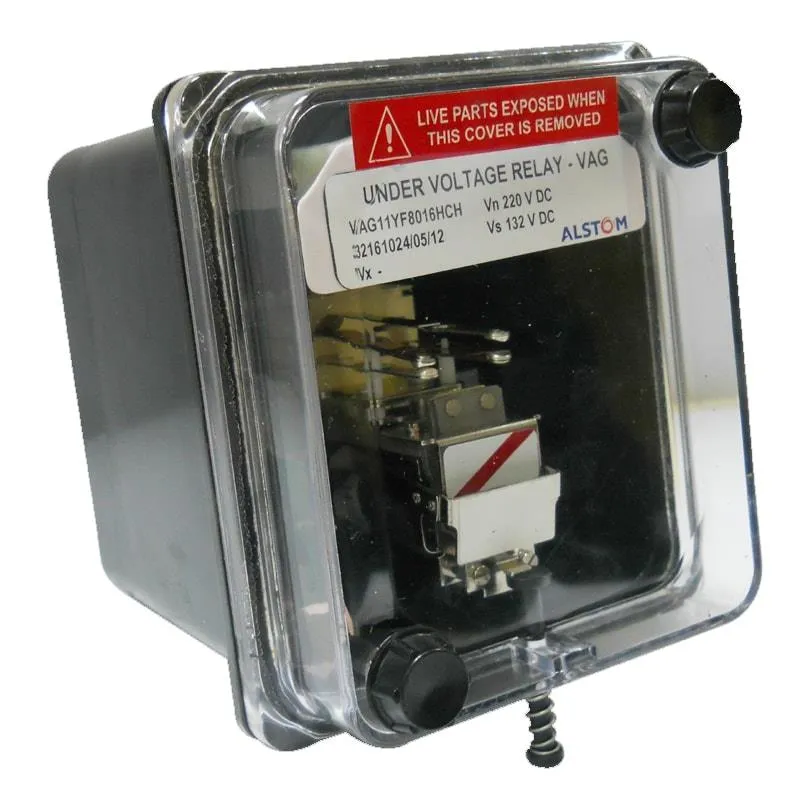

Alstom Voltage Protection relay VAG11YF8002FCH
SKU : vag11yf-fch-VAG11YF8002FCH
Mfr Part No. : VAG11YF8002FCH
HSN Code : 8536
Weight : 4500.000 in Gram (per Bag)
| GBVAG11YF8002FCH | |||||
| INST OVER VOLTAGE RELAY WITH FIXED SETTI | |||||
| Technical Specifications | |||||
| Model No : VAG11YF8002F(M) | |||||
| VAG11(O/V) | |||||
| CASE SIZE - 1/4N V 10T | |||||
| CONTACTS (S/R OR H/R) - 1 N/O 1 N/C S/R | |||||
| FLAG - STANDARD FOR O/V | |||||
| MOUNTING - FLUSH | |||||
| O/C OR O/V SETTING - 110% | |||||
| VOLTAGE/CURRENT NOMINAL - 220V DC | |||||
| External Resistor | |||||
| Name Plate RFB9067-005 | |||||
| Outline Diagram MFM015 | |||||
| Wiring Diagram ADZ051-4-5 |
Electro Mechanical Relay
