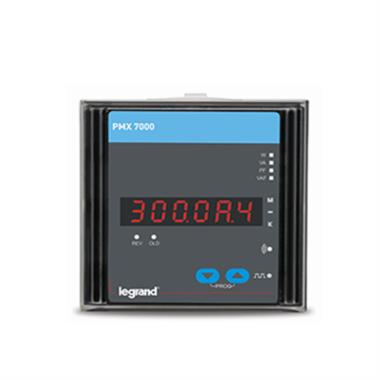

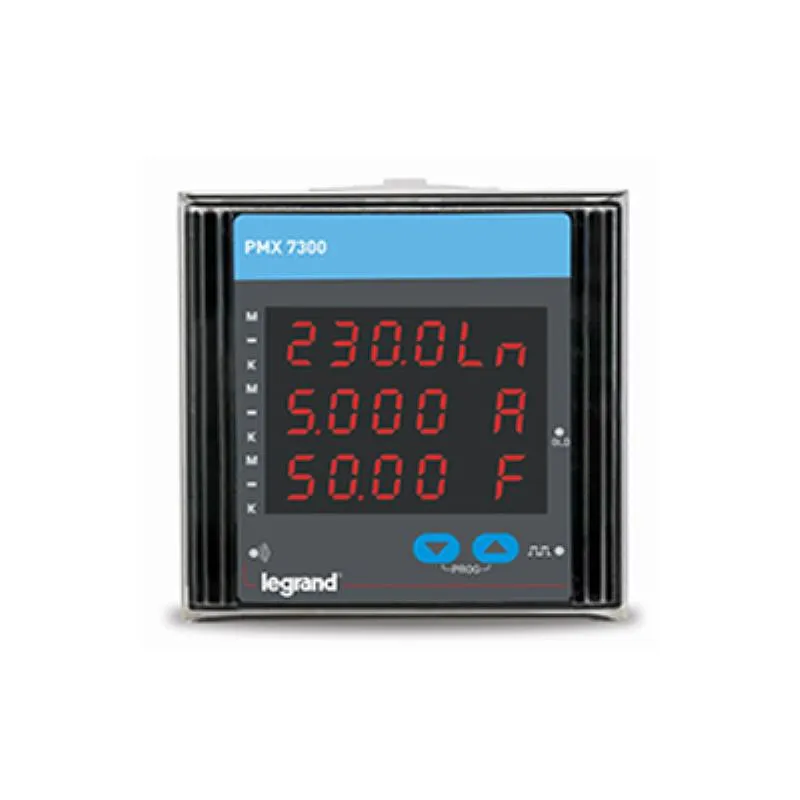

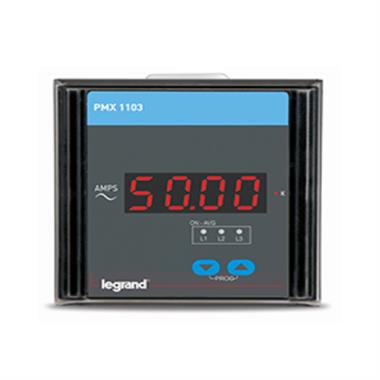

Legrand PMX Digital Multifunction meter MFM with RS485
Mfr Part No.
HSN Code: : 90283010
500.000 in Gram
- Model Multi-function Meter
- Meter Type Multi Function Meter
- RoHS Compliance
- Bright LED display to view more than 25 parameters.
- Displays full range of parameters
- Basic : Vll, VLn, A (Avg. & Phase Wise), F
- Power: W, PF , VA (Avg. & Phase Wise)
- Energy : Wh,
- Load Hours, Run Hours, Old Wh, Old Load Hours
- Auto scaling capability in adjustment of Kilo, Mega, Giga.
- Positive energy accumulation even with CT polarity reversal with reverse lock programmable
- High Accuracy with class 1 as per IEC 62053-21
- Site selectable CT/PT ratios
- Site selectable CT Secondary 1A/5A
- Universal control power supply 80 – 300V AC/DC, 40-70Hz
- Password protection for tamper proofing
- Seamless integration with EMS/SCADA system with RS485 serial channel communication, Industry standard Modbus RTU protocol.
- Provision for Tamper proofing with meter casing*
- *optional strip for tamper proofing
- ^ Basic Multifunction Meter: Basic (VLL, VLN, A, F) or W or VA or PF or WH
