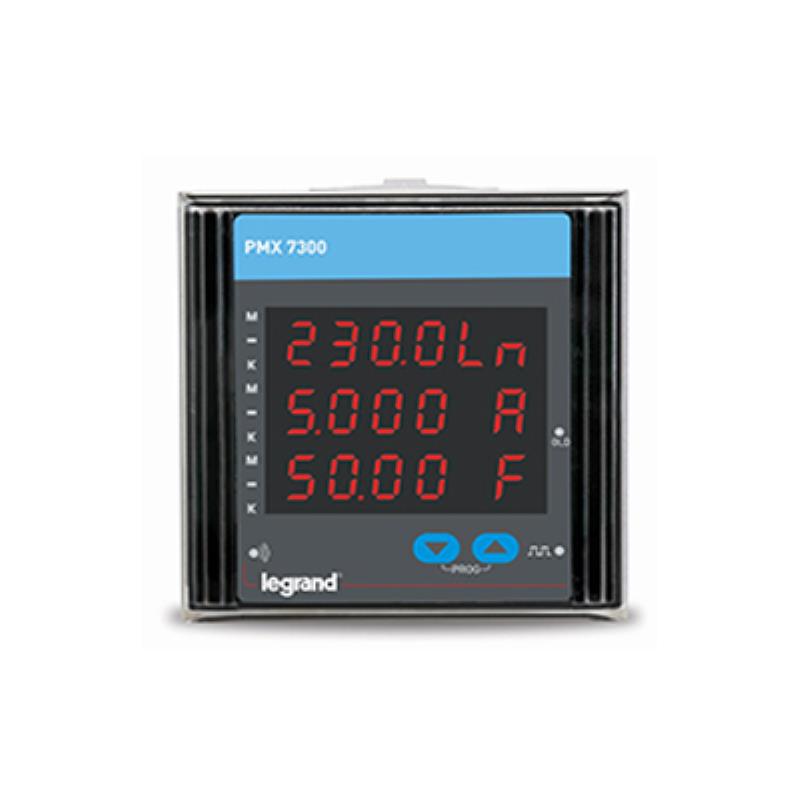

Legrand PMX Digital Multifunction meter MFM Total Harmonics Distortion
Legrand PMX Digital Multifunction meter MFM Total Harmonics ..

Legrand PMX Digital THD(Total Harmonics Distortion) Multifunction meter with RS485

SKU Code : multi-meter-thd-RS485-414993

Mfr Part No. : 414993

HSN Code: : 90283010

Weight : 500.000 in Gram

Brand : Legrand



Technical Specification

  • Model Multi-function Meter
  • Meter Type Multi Function Meter
PRODUCT FEATURES
  • MFM THD RS485
  • Cl 1
MAIN FEATURES
  • RoHS Compliance
  • Advance multifunction meter with High/Low recording of VLL, VLN, A, Hz, PF, Var with time stamp.
  • Voltage & Current THD (Total Harmonics Distortion) with Individual harmonics up to 31st order.
  • K-factor V & A to keep check on the losses due to harmonic load currents & their effects on transformer heating.
  • Load manager with demand monitoring
  • RTC based Demand management
  • Import/Export/Net monitoring of Wh, VAH, VArh Inductive/Capacitive, Load hours
  • Auto scaling capability in adjustment of Kilo, Mega, Giga.
  • Positive energy accumulation even with CT polarity reversal with reverse lock programmable
  • High Accuracy with class 1 as per IEC 62053-21 & class 0.5s as per IEC 62053-22
  • Site selectable CT/PT ratios
  • Site selectable CT Secondary 1A/5A
  • Universal control power supply 80 – 300V AC/DC, 40-70Hz
  • Password protection for tamper proofing
  • Seamless integration with EMS/SCADA system with RS485 serial channel communication, Industry standard Modbus RTU protocol.
  • Byte order option – Field Programmable Float/ Little Endian/ Big Endian data formats

  • Model Multi-function Meter
  • Meter Type Multi Function Meter
