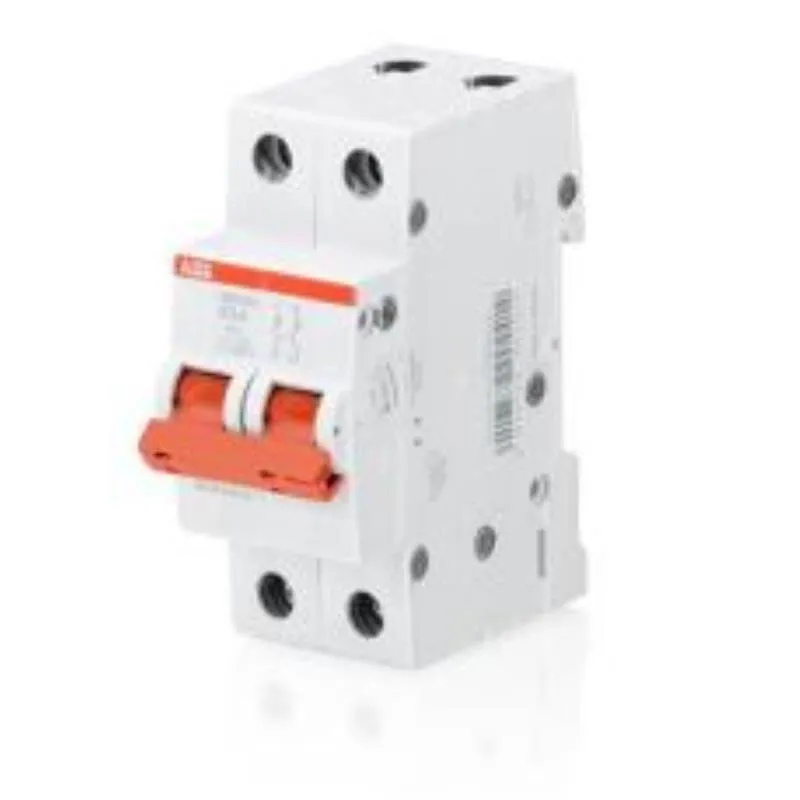

ABB 40A two Pole ( 2P ) SDB202/40 DIN RAIL IP20 Isolator (SHD SERIES)

The SHD 200 extends the proven System pro M compact® series by a new range of switch disconnectors. The series is available with 1 to 4 poles with rated currents from 16 to 63 A and provides disconnection properties according to IEC/EN 60947-3. A rated voltage of 240/415 V AC and a rated conditional short-circuit current of 10 kA enables a wide range of use. The laser printing and the design of the devices allow a consistent optical appearance in the distribution board.

Special features

− Isolating characteristics acc. to IEC/EN 60947-3

− Protection degree IP20 = finger safe − 25 mm² terminal

− Consistent design to all other System pro M DIN rail products

− Cross wiring with MCBs or RCDs using busbars PS

− Durable device identification due to laser labeling

− Captive screws with recessed head

− Locking device as accessory for unauthorized ON/OFF switching

− Approved acc. to IEC/EN 60947-3 for international use
