SKU Code : 2CMA167686R1000
Mfr Part No. : 2CMA167686R1000
HSN Code: : 8536
Weight : 700.000 in Gram
Brand : ABB

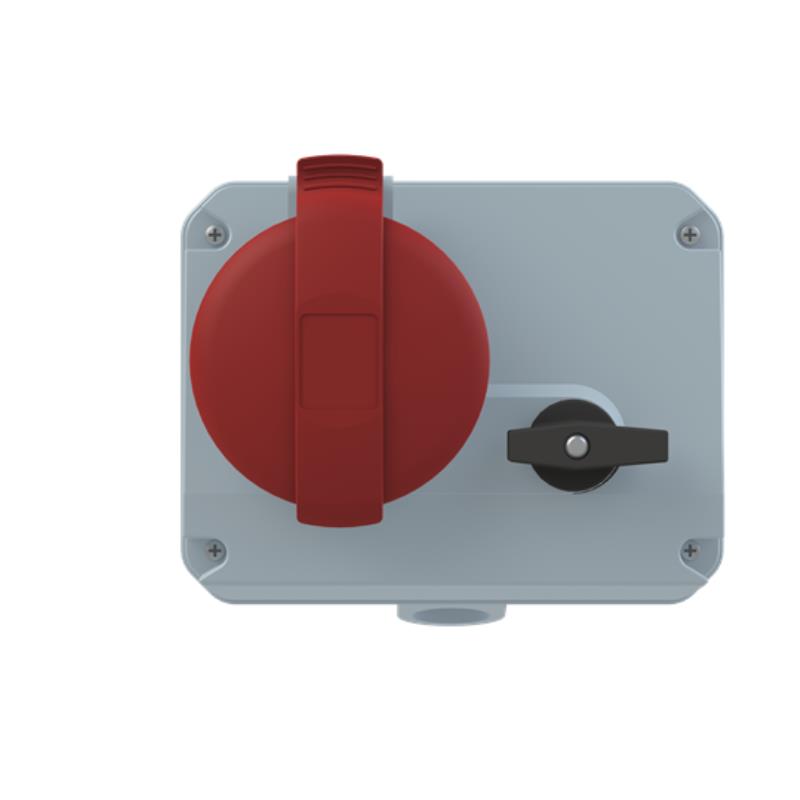

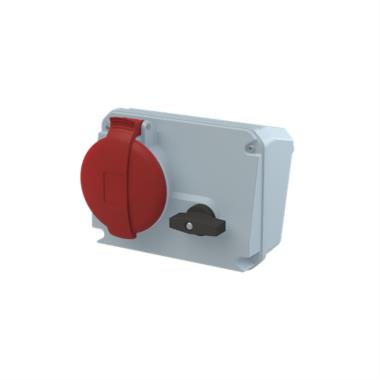

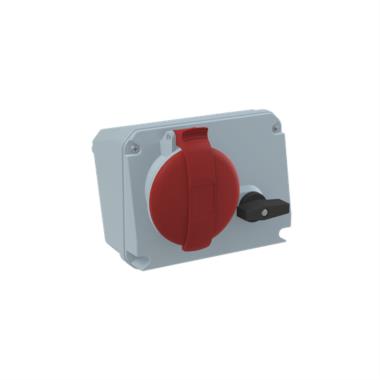

Switched Interlocked Socket Outlet, horisontal, earthing sleeve position 6h, rated current 32A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red
| Compatibility | Industrial Plugs & Sockets |
|---|---|
| Size | 165X127X130 |
| Rated Voltage (Ur) | 200/346 ... 240/415 volt |
| Product Class | Industrial Switched Interlocked Socket Outlets |
| Rated Current (In) | 32A |
| Degree of Protection | IP44 |
| Protection Type | Switched Interlocked |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Pin Configuration | 3P+N+E |
| Standards | IEC 60309-1, -2, -4 |
| Number Of Poles | 5 |
| Package Width | 135 millimetre |
| Package Length | 140 millimetre |
| Package Height | 200 millimetre |
| Invoice Description | Ind. P&S#432MHS6 |
| Product Range | Industrial Plugs & Sockets |
| Package Gross Weight | 0.74 kilogram |
| Mounting Type | Horizontal |
| Housing Material | Thermoplastic (PBT) |
| Function | Switched interlocked socket outlet, horizontal |
| Extended Product Type | 432MHS6 |
| Color | Red |
| Total GST Percentage | 18.00 |
| Description | Qty | Unit |
|---|---|---|
|
ABB Switched interlocked socket-outlet 6h 32A IP44 3P N E
SKU Code
:
2CMA167686R1000
Mfr Part No. :2CMA167686R1000
Voltage :230V
Ampere :32 A
|
Pieces | |
Industrial Socket
IP44
3 Pole
