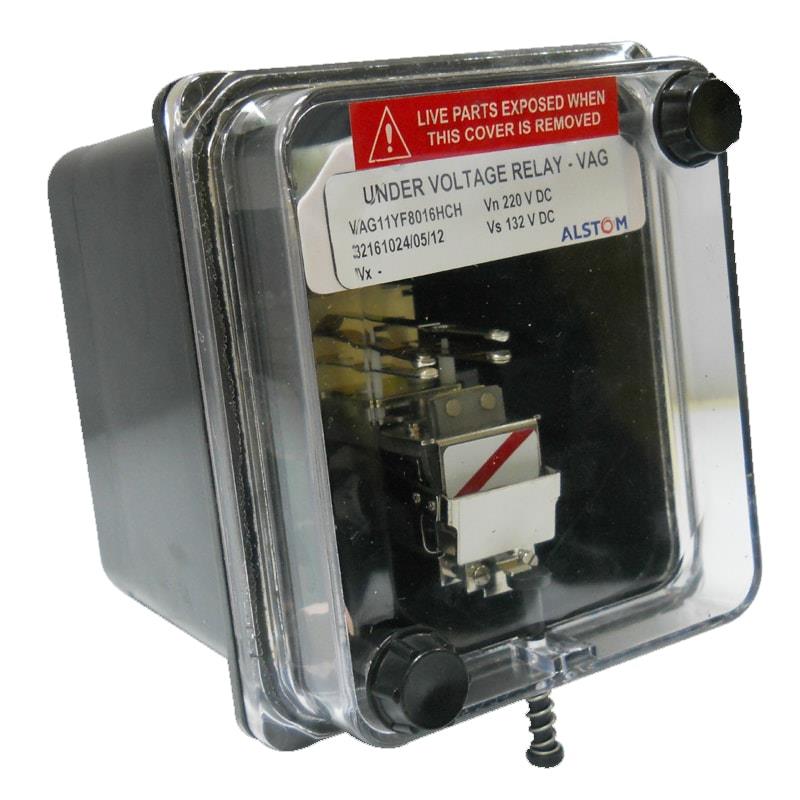

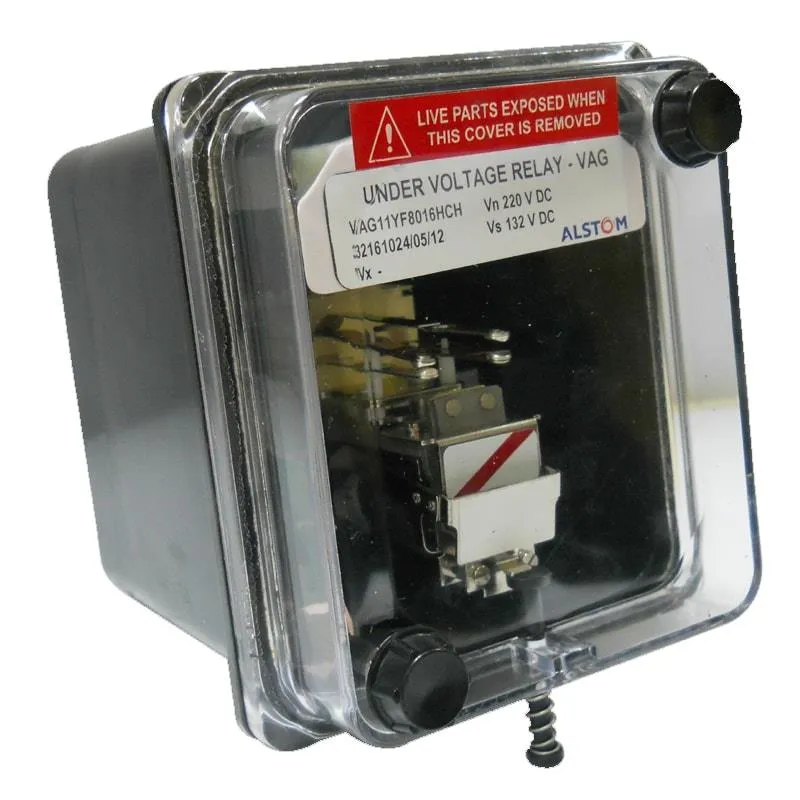

Alstom Voltage Protection relay VAG11YF44G
SKU : Alstom-VAG11YF44G
Mfr Part No. : VAG11YF44G
HSN Code : 8536
GBVAG11YF44G
INST UNDER VOLTAGE RELAY WITH FIXED SETT
| Technical specification | |
| Relay model no | VAG11YF44G |
| Relay type | VAG11(U/V) |
| Case size | 1/4N V 10T |
| CONTACTS (S/R OR H/R) | 1 N/O 1 N/C S/R |
| VOLTAGE/CURRENT NOMINAL | 110V AC |
| Contacts (S/R OR H/R) | 1 N/O 1 N/C S/R |
| Flag | REVERSE FOR U/V |
| Mounting | Flush |
| External Resistor | |
| E/F OR U/V SETTING | 60% U/V |
| Name plate | RFB9067-012 |
| Outline drawing | MFM015 |
| Wiring diagram | MADZ 075-3 |
|
Cut out Dimension (in mm.) (H x W x D |
109 X 97 X 115 |
Electro Mechanical Relay
