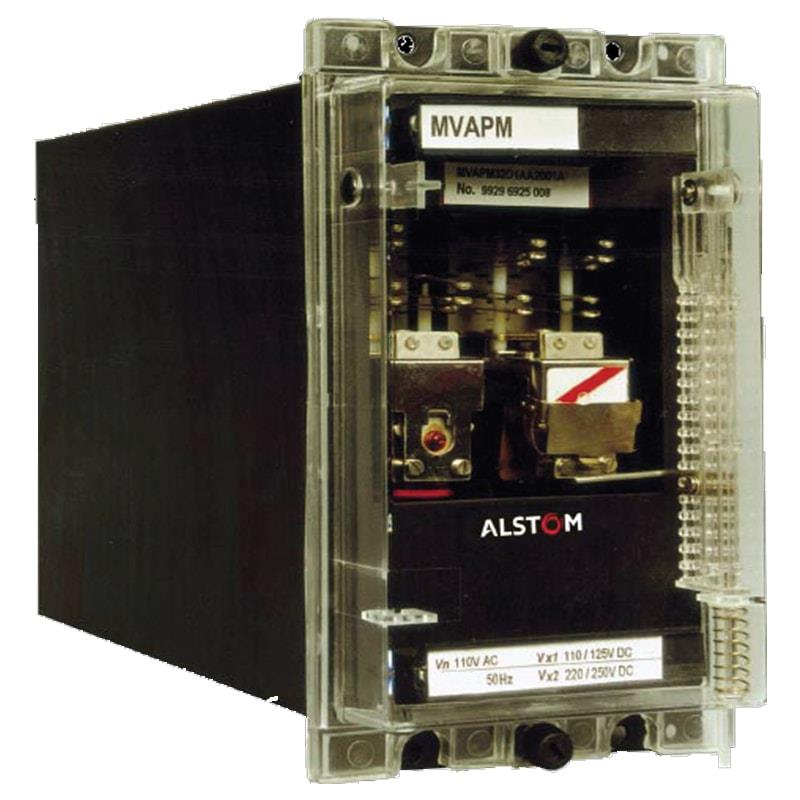

| MVAPM32D1BA2001A |
| 3 PHASE VOLTAGE SUPPLY MONITORING RELAY |
| Technical Specifications |
| Relay Model No MVAPM32D1BA2001A |
| Relay type MVAPM 32 |
| Case size Size 4 - Midos |
| Nominal voltage - Vn 110V ac |
| Frequency 60 Hz |
| Aux.voltage - Vx1 110/125V dc |
| Aux.voltage - Vx2 220/250V dc |
| Phase 3 |
| Output contacts 4 C/O 2 N/O S/R |
| Aux. Front mtd L.H RLB - 3 C/O S/R N/F |
| Aux. Front mtd R.H RLC - 2 N/O 2 C/O S/R W/F |
| Aux. Rear mtd RLA - 1 N/C S/R N/F |
| Delay on pick up RLC - 30 to 40 mSECS |
| Name Plate RGJ9104-217 |
| Outline Diagram RGJ0025 SHT-3 |
| Wiring Diagram 01 MVAPM32 001 |
Electro Mechanical Relay
Voltage Balance Relay
