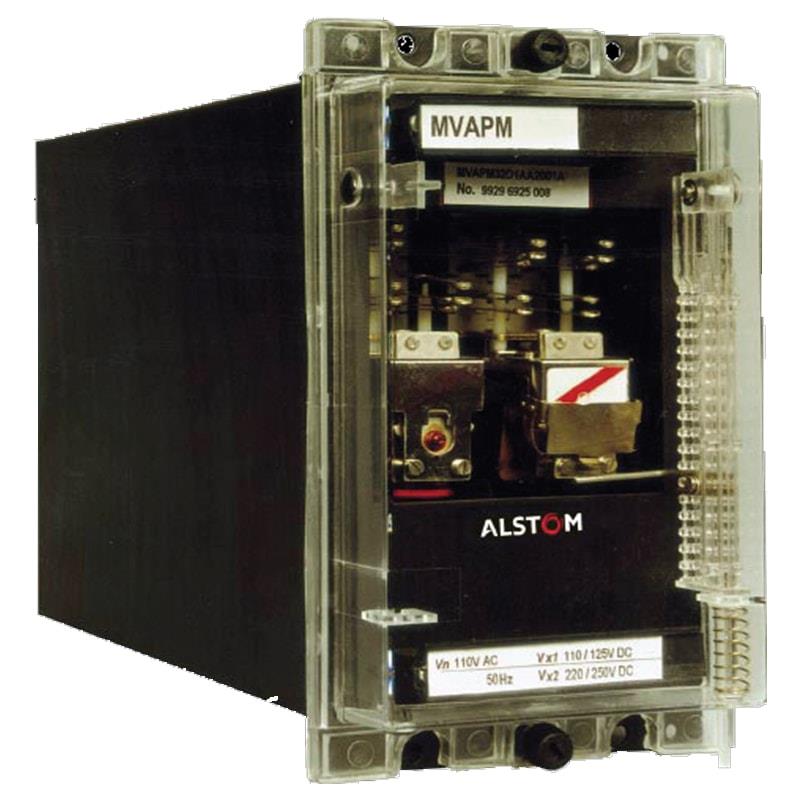

* The original products may vary from the picture
Alstom Voltage Balance Relay MVAPM32D1BA1003A
Visit the GE VERNOVA - ALSTOM Store
SKU : MVAPM32D1BA1003A
Mfr Part No. : MVAPM32D1BA1003A
HSN Code : 8536
| MVAPM32D1BA1003A |
| VOLTAGE SELECTION RELAY S/R CONTS. 60 HZ |
| Technical specification |
| Model Number MVAPM32D1BA1003A |
| Relay type MVAPM 32 |
| Case Size 4 |
| Aux.Voltage - VX 30/54 V dc |
| Supply Voltage - Vn 110 V ac |
| Frequency 60 Hz |
| Phase 3 |
| Output Contacts 4C,2N/O S/R |
| Aux.Unit Front Mtd L.H RLB 3C S/R |
| Flag No |
| Aux.Unit Front Mtd R.H RLC 2N/O 2C S/R |
| Flag Yes |
| Aux.Unit Rear Mtd RLA 1N/C S/R |
| Flag No |
| Note:- In Name Plate Rewrite 60 Hz |
| Instead of 50 Hz. |
| Name Plate RGJ9104 217 |
| Outline Drawing RGJ0025 SHT-3 |
| Wiring Diagram 01 MVAPM32 001 |
Electro Mechanical Relay
