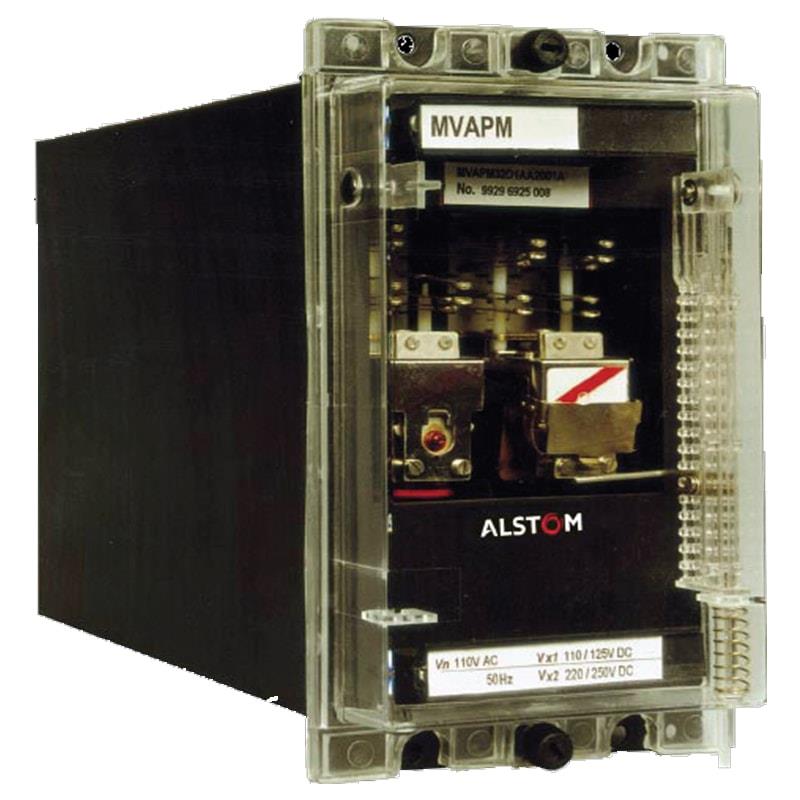

Alstom Voltage Balance Relay MVAPM32D1AA2001A

SKU Code : MVAPM32D1AA2001A

Mfr Part No. : MVAPM32D1AA2001A

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Voltage Balance Relay
MVAPM32D1AA2001A
3 PHASE VOLTAGE SUPPLY MONITORING RELAY
Technical Specifications
Relay Model No             MVAPM32D1AA2001A
Relay type                 MVAPM 32
Case size                  Size 4 - Midos
Nominal voltage            110V ac
Frequency                  50 Hz
Aux.voltage - Vx1          110/125V dc
Aux.voltage - Vx2          220/250V dc
Phase                      3
Output contacts            4C 2M S/R
Aux.unit Front mtd L.H     RLB - 3C S/R N/F
Aux.unit Front mtd R.H     RLC - 2M 2C S/R W/F
Aux.unit Rear mtd          RLA - 1B S/R N/F
Delay on pick up           RLC - 30 to 40 mSECS
Name Plate                 RGJ9104-217
Outline Diagram            RGJ0025 SHT-3
Wiring Diagram             01 MVAPM32 001
