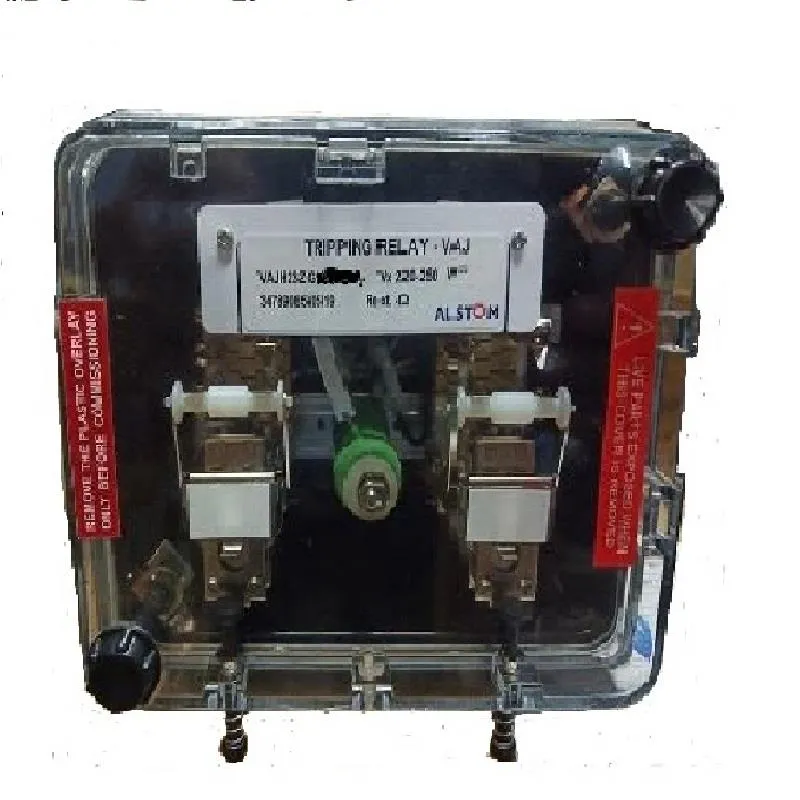

GBVAJH23ZG1002BBA |
2 ELEMENT VOL. OP HIGH SPEED TRIP RELAY |
Technical Specifications: |
Relay model no - VAJH23ZG1002BBA |
Relay type - VAJH23 |
Aux. current or voltage - 220 - 250V DC |
Burden - High |
Case size - 1/2N Horz. 20T |
Contacts L.H Unit - 3 N/O 1 N/C |
Contacts R.H Unit - 3 N/O 1 N/C |
Total output contacts - 6 N/O 2 N/C H/R |
Flag - Yes |
Mounting - Flush |
Note:-Resistor 'R1' 1 off and 'R2' |
1 off to be connected in parallel. |
Name Plate - RFB9070 004 |
Outline Diagram - FG0031 SHT. 3A |
Wiring Diagram - 01VAJH23ZG 002 |
Cut Out Dimension(in mm)-(H X W X D) - 116x145x130 |
Electro Mechanical Relay
Tripping relays
