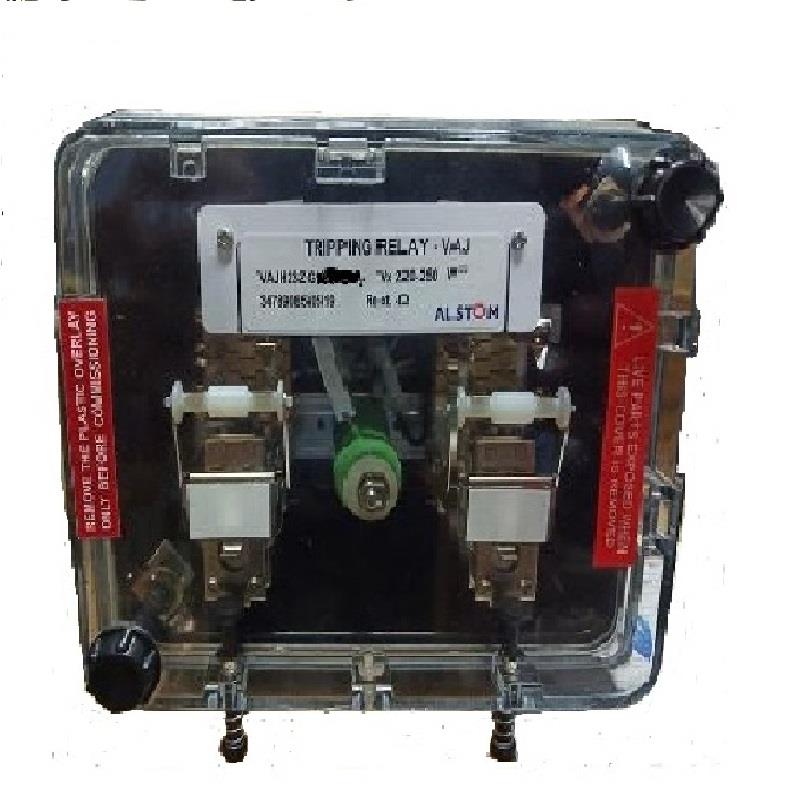

* The original products may vary from the picture

Alstom Tripping relays VAJH23ZG0754BBA

SKU Code : Alstom-vaJH23ZG0754BBA

Mfr Part No. : VAJH23ZG0754BBA

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Tripping relays
GBVAJH23ZG0754BBA
2 ELEMENT VOL. OP HIGH SPEED TRIP RELAY
Technical Specifications:
Relay Model No           -   VAJH23ZG0754BBA
Relay type               -   VAJH 23
Case size                -   1/2N H 20T
Aux.current or voltage   -   110 - 125V DC
Contacts L.H Unit        -   2 N/O 2 N/C
Contacts R.H Unit        -   2 N/O 2 N/C
Total output contacts    -   4 N/O 4 N/C H/R
Burden                   -   High
Flag                     -   Yes
Note:-Resistor `R1' 1 off and `R2'
1 off to be connected in parrallel
Mounting                 -   Flush
Name Plate               -   RFB9070 004
Outline Diagram          -   RFG0031 SHT.3A
Wiring Diagram           -   01VAJH23ZG 002
Cut Out Dimension(in mm)-(H X W X D)           -   116x145x130
