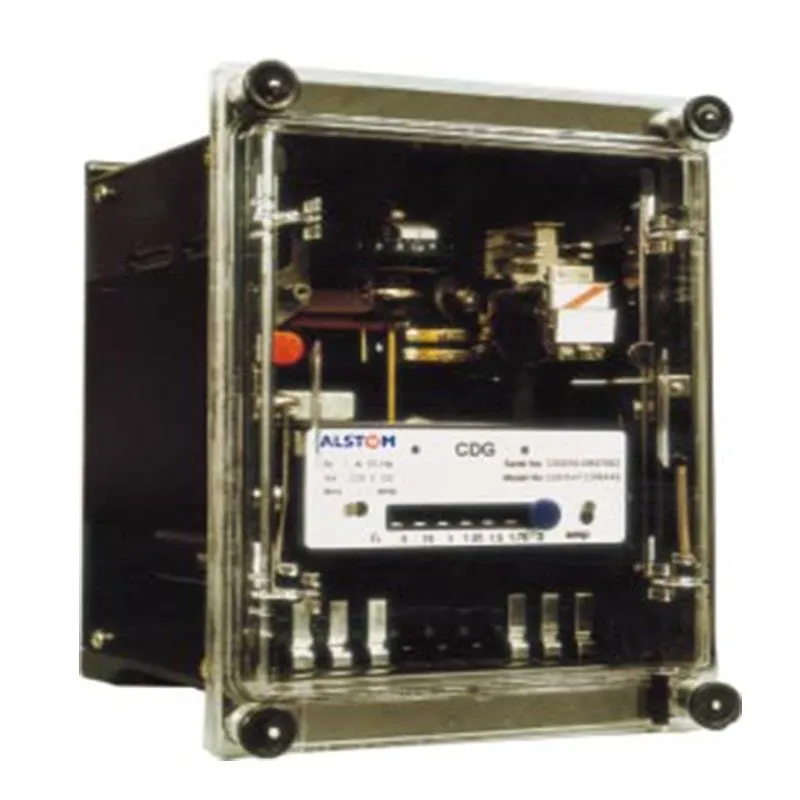

Alstom SELF-POWERED INVERSE TIME O/C OR E/F Relay CDG11AF014SACH

SKU Code : alstom-CDG11AF014SACH

Mfr Part No. : CDG11AF014SACH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)


GBCDG11AF014SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL




Technical specification
Relay model no                  CDG11AF014SA(M)
Relay type                      CDG11
Case size                       1D V 10T
Application                     E/F
C.T.Secondary                  5 AMP C.T.
Contacts (S/R OR H/R)                 2 N/O S/R
Flag                            Yes
Mounting                        Flush
BURDEN    3VA /1.3 SECS.
E/F OR U/V SETTING 0.5 - 2 Amps.
O/C OR O/V SETTING   NOT APPLICABLE
Name plate                    RFG9125-795
Outline drawing               MFJ012
Wiring diagram                 MADZ802.63-1



  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
