* The original products may vary from the picture

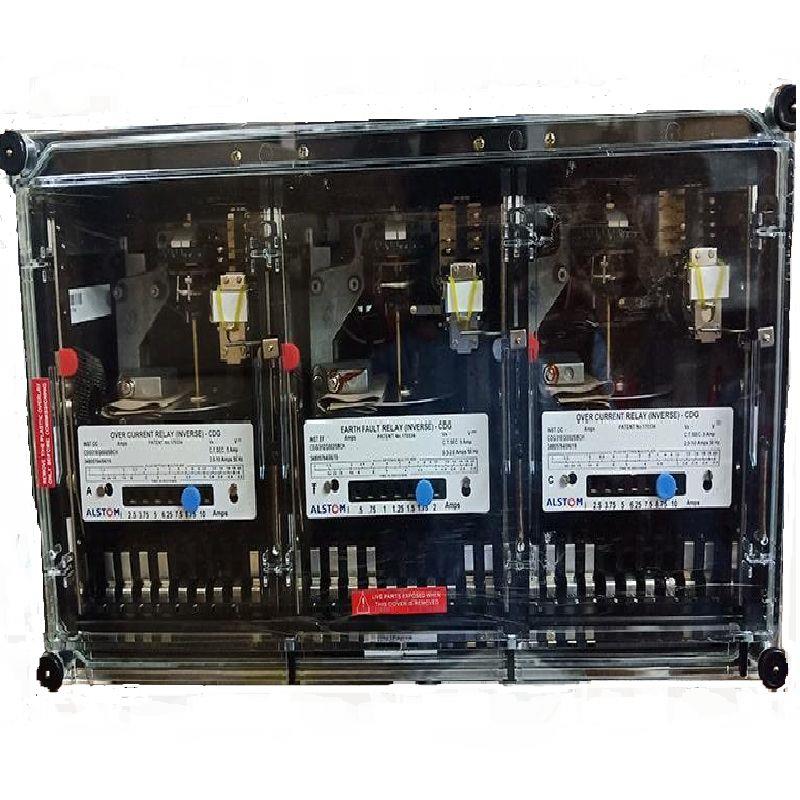

Alstom Over current & Earth fault Protection (IDMT relay) CDG31EG002SBCH

SKU Code : CDG31EG002SBCH

Mfr Part No. : CDG31EG002SBCH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
GBCDG31EG002SBCH
NON DIRECTIONAL INV TIME 3O/C OR 2O/C&1E
MODEL NO                  -  CDG31EG002SBCH
RELAY TYPE                -  CDG 31
APPLICATION               -  2 O/C + 1 E/F
BURDEN / D.M.T            -  3 VA / 3 SEC.
C.T. SECONDARY            -  5 AMP C.T.
CASE SIZE                 -  3D HORZ.
CONTACTS (S/R OR H/R)     -  2 N/O S/R
E/F  SETTING              -  0.5 - 2 Amps.
FLAG                      -  YES
FREQUENCY                 -  50 HZ
MOUNTING                  -  FLUSH
O/C   SETTING             -  2.5 - 10 Amps.
NAME PLATE                -  RFG9126 903
Outline Diagram              MFJ 014
Wiring Diagram               MADZ802.63-1

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
