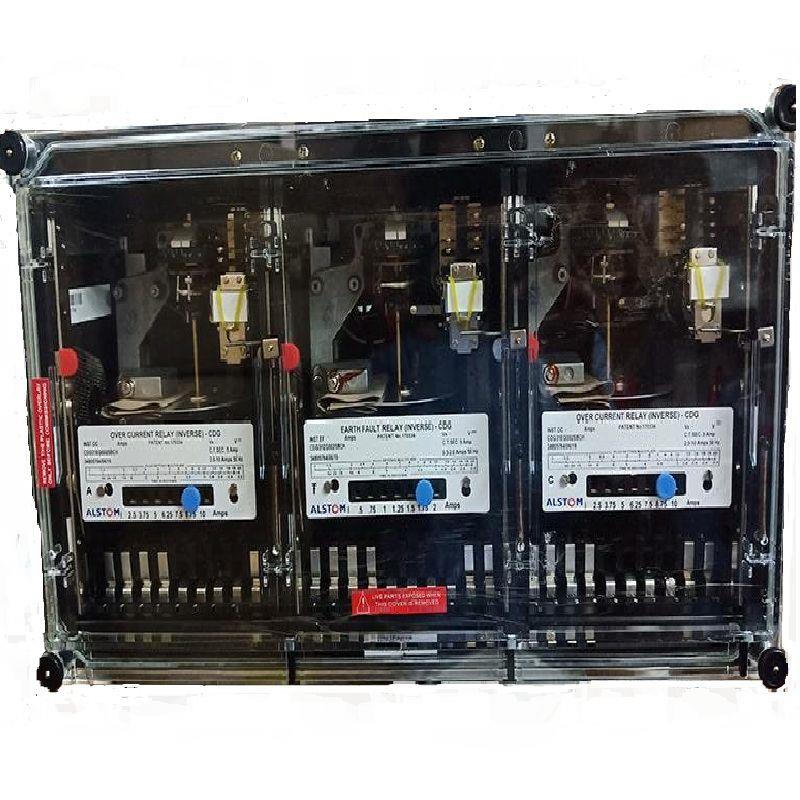

Alstom Over current & Earth fault Protection relay CDG31EG001SBCH

SKU Code : alstom- CDG31EG001SBCH

Mfr Part No. : CDG31EG001SBCH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)


GBCDG31EG001SBCH
NON DIRECTIONAL INV TIME 3O/C OR 2O/C&1E




Technical Specifications
Model No :   CDG31EG001SBCH
Relay type   CDG 31
APPLICATION  2 O/C + 1 E/F
BURDEN / D.M.T     3 VA / 3 SECS.
C.T. SECONDARY  5 AMP C.T.
CASE SIZE   3D HORZ.
CONTACTS (S/R OR H/R) 2 N/O S/R
E/F SETTING 1 - 4 Amps.
FLAG       YES
MOUNTING  FLUSH
O/C SETTING 2.5 - 10 Amps.
FREQUENCY  50 HZ
Name Plate    RFG9126 904
Outline Diagram   MFJ 014
Wiring Diagram     MADZ802.63-1



  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
