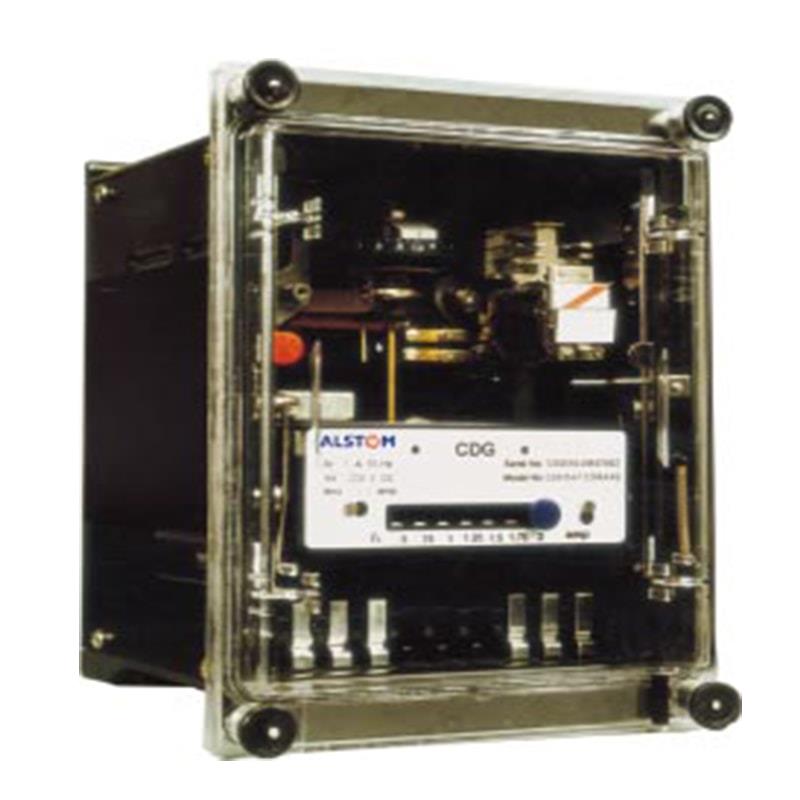

* The original products may vary from the picture

Alstom Over current & Earth fault Protection relay CDG11AF016SACH

SKU Code : alstom-CDG11AF016SACH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)




GBCDG11AF016SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL




Technical Specifications
Model No :   CDG11AF016SA(M)
Relay type   CDG11
APPLICATION  E/F
BURDEN / D.M.T     3VA / 1.3 SECS.
C.T. SECONDARY   1 AMP CT.
CASE SIZE    1D V 10T
CONTACTS (S/R OR H/R)  2 N/O S/R
E/F OR U/V SETTING  0.1 - 0.4 Amps.
FLAG       YES
MOUNTING  FLUSH
O/C OR O/V SETTING  NOT APPLICABLE
Name Plate     RFG9125692
Outline Diagram   MFJ012
Wiring Diagram     MADZ802.63-1
Cut out Dimension (in mm.)
(H x W x D)
222 X 150 X 203



  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
