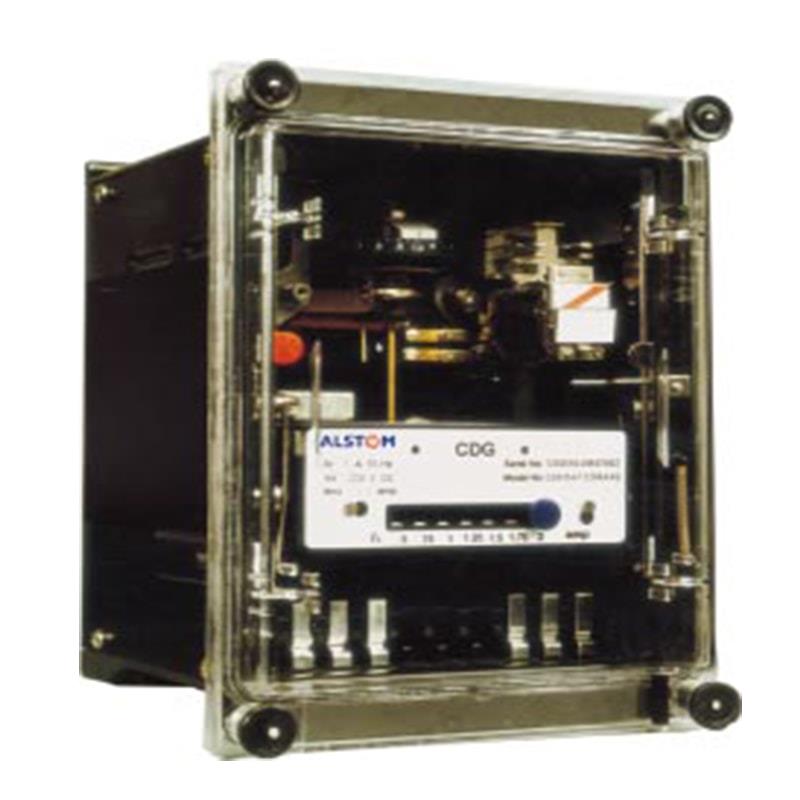

* The original products may vary from the picture

Alstom Over current & Earth fault Protection (IDMT relay) CDG11AF003SACH

SKU Code : CDG11AF003SACH

Mfr Part No. : CDG11AF003SACH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
GBCDG11AF003SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL
Technical Specifications
Model No                    CDG11AF003SACH
CDG11
APPLICATION               -  E/F
BURDEN / D.M.T            -  3VA / 3 SECS.
C.T. SECONDARY            -  5 AMP C.T.
CASE SIZE                 -  1D V 10T
CONTACTS (S/R OR H/R)     -  2 N/O S/R
E/F OR U/V SETTING        -  1-4 Amps.
FLAG                      -  YES
MOUNTING                  -  FLUSH
O/C OR O/V SETTING        -  NOT APPLICABLE
Name Plate                   RFG9126796
Outline Diagram              MFJ012
Wiring Diagram               MADZ802.63-1

  • Type Electro Mechanical Relay
  • Protection Type Over current & Earth fault Protection(IDMT Relay)
