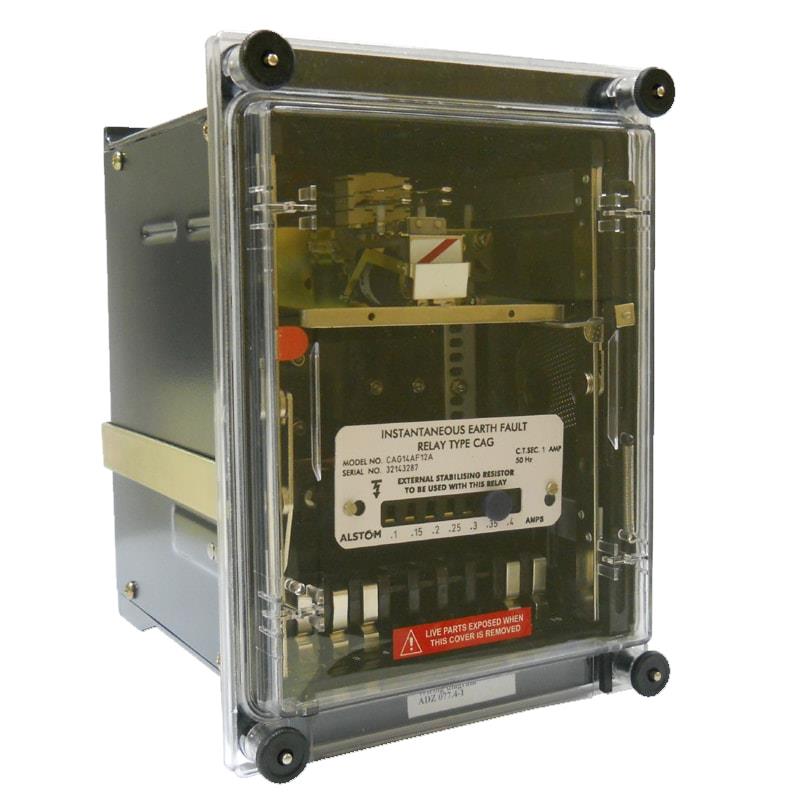

GBCAG14AF12A
INST.HIGH STAB CIRCULATING CURRENT RELAY
| Technical specification | |
| Relay model no | CAG14AF12A |
| Relay type | CAG 14 |
| Case size | 1D V 10T |
| Application | E/F |
| Current setting | 0.1 to .4 amps |
| C.T.Secondary | 1 amps |
| Contacts | 2 N/O S/R |
| Frequency | 50 Hz |
| Flag | Yes |
| Mounting | Flush |
| Ext.Resistor | 200 Ohms |
| Name plate | RFM9053 805 |
| Outline drawing | MFJ 012 |
| Wiring diagram | ADZ 077.4-1 |
|
Cut out Dimension (in mm.) (H X W X D) |
222 X 150 X 203 |
Electro Mechanical Relay
Restricted earth fault
Technical Specification
