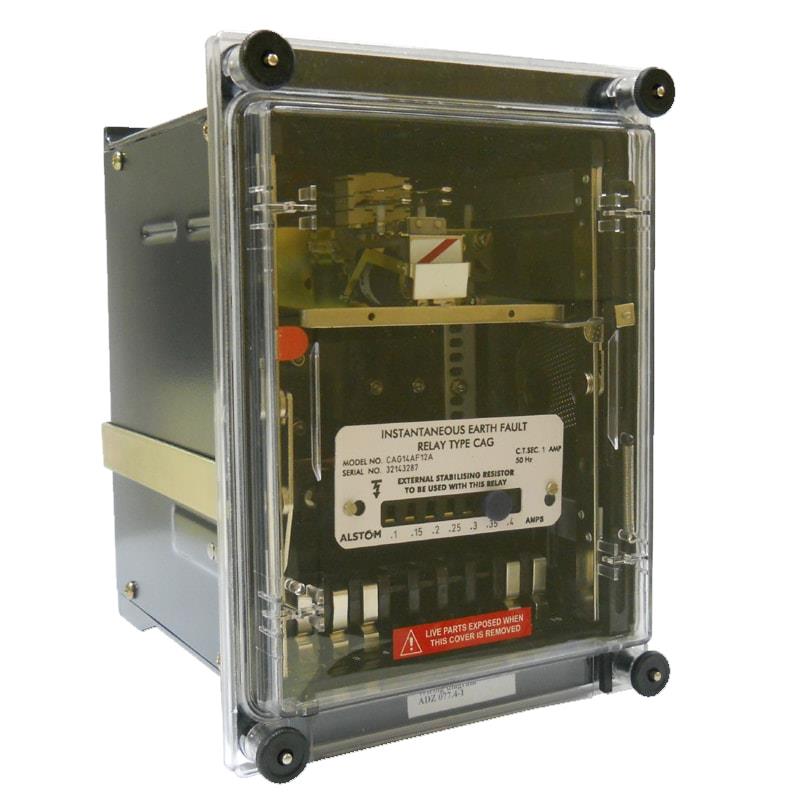

* The original products may vary from the picture

Alstom Differential Protection relay CAG34AF58A

SKU Code : Alstom-CAG34AF58A

Mfr Part No. : CAG34AF58A

HSN Code: : 8536

Brand : ALSTOM



Tecnical Specification

  • Type Electro Mechanical Relay
  • Protection Type Differential Protection
GBCAG34AF58A
INSTANT.DIFFERENTIAL RELAY WITH FLAG.
Technical Specifications
Model No :     CAG34AF58A
CAG34
APPLICATION               -  DIFFERENTIAL
C.T. SECONDARY            -  5 AMP C.T.
CASE SIZE                 -  1D V 10T
CONTACTS (S/R OR H/R)     -  2 N/O S/R
E/F OR U/V SETTING        -  10 - 40%
FLAG                      -  YES
FREQUENCY                 -  50 HZ
MOUNTING                  -  FLUSH
STABLISING RESISTOR       -  50 OHMS FOR 5A CT
External Resistor
Name Plate                   RFB9028-039
Outline Diagram              MFJ012 & FJ0297
Wiring Diagram               ADZ081-7-1
Cut Out Dimension(in mm)-(H X W X D)         -   222x150x203
