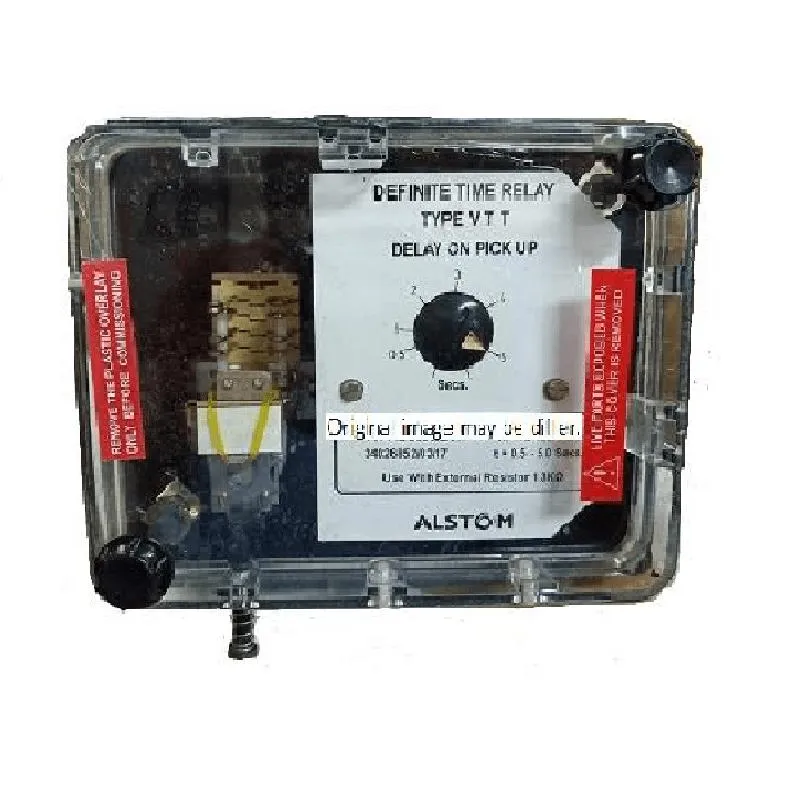

ALSTOM Definite Time Delay Relay VTT11ZG8179BCH

SKU Code : VTT11ZG8179BCH

Mfr Part No. : VTT11ZG8179BCH

HSN Code: : 8536

Brand : ALSTOM



Technical Specification

  • Type Electro Mechanical Relay
  • Protection Type Definite Time Delay Relay

VTT11ZG8143BCH

Click to Download Catalog for VTT


STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :     VTT11ZG8143B(M)
VTT11
APPLICATION               -  PICK UP
AUX. CURRENT OR VOLTAGE   -  110V DC
CASE SIZE                 -  1/2N H 12T
CONTACTS (S/R OR H/R)     -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U OR D/O     -  0.5 - 5 SECS.
External Resistor            1.3 K.OHMS
Name Plate                   RZF9066-601
Outline Diagram              MFM017 & FJ0349
Wiring Diagram               MZDZ601.01-2
VTT11ZG8142BCH

Click to Download Catalog for VTT

STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :     VTT11ZG8142BCH
VTT11
Application               -  Pick UP
Aux. Voltage              -  110 - 125 V dc
Case Size                 -  1/2N H 12T
Contacts Output           -  2 N/O 2 N/C S/R
Flag                      -  Yes
Mounting                  -  Flush
Timing Range              -  0.1 - 1 Secs
External Resistor            1.3 K Ohms
Name Plate                   RZF9066-601
Outline Diagram              MFM017 & FJ0349
VTT11ZG8023LCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :                  VTT11ZG8023LCH
VTT11
APPLICATION               -  PICK UP
AUX. CURRENT OR VOLTAGE   -  220 - 250V AC
CASE SIZE                 -  1/2N H 12T
CONTACTS (S/R OR H/R)     -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U OR D/O     -  0.5 - 5 SECS.
External Resistor
Name Plate                   RZF9066-601
Outline Diagram              MFM017
Wiring Diagram               MZDZ601.02-2

Click to Download Catalog for VTT

VTT11ZG8024LCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
RELAY MODEL NO            -  VTT11ZG8024LCH
VTT11
APPLICATION               -  PICK UP
AUX. CURRENT OR VOLTAGE   -  220 - 250V AC
CASE SIZE                 -  1/2N H 12T
CONTACTS (S/R OR H/R)     -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U OR D/O     -  1 - 10 SECS.
External Resistor
NAME PLATE                -  RZF9066-601
Outline Diagram              MFM017
Wiring Diagram               MZDZ601.02-2



Click to Download Catalog for VTT









VTT11ZG8053BCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :                   VTT11ZG8053BCH
VTT11
Application               -  Pick Up
Aux. Voltage              -  220 - 230 V dc
Case Size                 -  1/2N H 12T
Contacts                  -  2 N/O 2 N/C S/R
Flag                      -  Yes
Mounting                  -  Flush
Timing Range              -  0.5 - 5 Secs.
External Resistor            3.3 K.OHMS 35 Watts
Name Plate                   RZF9066-601
Outline Diagram              MFM017 & FJ0349
Wiring Diagram               MZDZ601.01-2





Click to Download Catalog for VTT









VTT11ZG8054BCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :                -  VTT11ZG8054BCH
VTT 11
APPLICATION               -  PICK UP
AUX.VOLTAGE               -  220 - 230 V DC
CASE SIZE                 -  1/2N H 12 TER
CONTACTS                  -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U            -  1 - 10 SECS.
External Resistor         -  3.3 K.OHMS
Name Plate                -  RZF9066-601
Outline Diagram           -  MFM017 <(>&<)> FJ0349
Wiring Diagram            -  MZDZ601.01-2





Click to Download Catalog for VTT









GBVTT11ZG8178BCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :                - VTT11ZG8178B(M)
                          - VTT11
APPLICATION               - PICK UP
AUX. CURRENT OR VOLTAGE   - 24 - 30V DC
CASE SIZE                 - 1/2N H 12T
CONTACTS (S/R OR H/R)     - 2 N/O 2 N/C S/R
FLAG                      - YES
MOUNTING                  - FLUSH
TIME DELAY P/U OR D/O     - 0.1 - 1 SEC.
Name Plate                - RZF9066-601
Outline Diagram           - MFM017
Wiring Diagram            - MZDZ601.01-2





Click to Download Catalog for VTT









GBVTT11ZG8179BCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No :     VTT11ZG8179BCH
VTT11
APPLICATION               -  PICK UP
AUX. CURRENT OR VOLTAGE   -  24 - 30V DC
CASE SIZE                 -  1/2N H 12T
CONTACTS (S/R OR H/R)     -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U OR D/O     -  0.5 - 5 SECS.
External Resistor
Name Plate                   RZF9066-601
Outline Diagram              MFM017
Wiring Diagram               MZDZ601-01-2





Click to Download Catalog for VTT









GBVTT11ZG8180BCH
STATIC DEF TIME DELAY RELAY WITH DELAY O
Technical Specifications
Model No                  -  VTT11ZG8180BCH
VTT11
APPLICATION               -  PICK UP
AUX. CURRENT OR VOLTAGE   -  24 - 30V DC
CASE SIZE                 -  1/2N H 12T
CONTACTS (S/R OR H/R)     -  2 N/O 2 N/C S/R
FLAG                      -  YES
MOUNTING                  -  FLUSH
TIME DELAY P/U OR D/O     -  1 - 10 SECS.
External Resistor
Name Plate                   RZF9066-601
Outline Diagram              MFM017
Wiring Diagram               MZDZ601-01-2





Click to Download Catalog for VTT









  • Type Electro Mechanical Relay
  • Protection Type Definite Time Delay Relay
