Delta Products

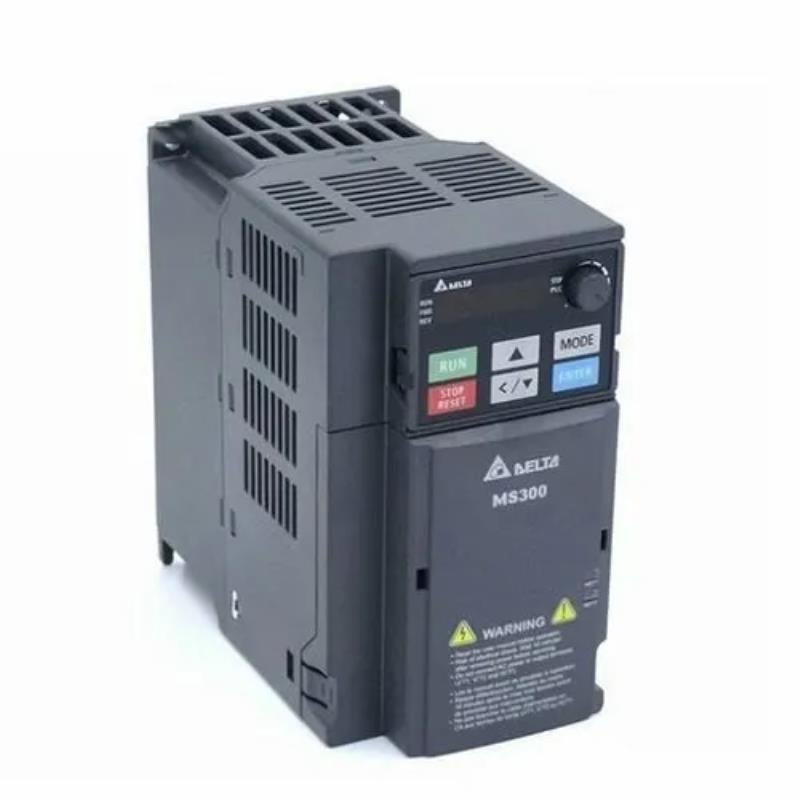

AC Drives, MS300 Series

MS300 Series Information

• Supports Open loop control of IM and PM motors
• Output frequency:

Standard models: 0 to 599 Hz
High speed models: 0 to 1500 Hz (V/f Control)

• Dual rating design:

120% for 60 seconds for Normal Duty (ND)
150% for 60 seconds for Heavy Duty (HD)

• Built-in PLC program with 2K steps capacity
• Built-in brake choppers for the entire series
• Removable 5-digit LED keypad for remote operation
• Safety standard compliance: Safe Torque Off (SIL2/PLd)
• Multi-motor Control,built-in four IM motor control parameters
• Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
• One high speed pulse input terminals MI7 built-in with maximum speed up to 33kHz
• One high speed pulse output terminals DFM built-in with maximum speed up to 33kHz
• New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
• Built-in one slot do communication card installation : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP
