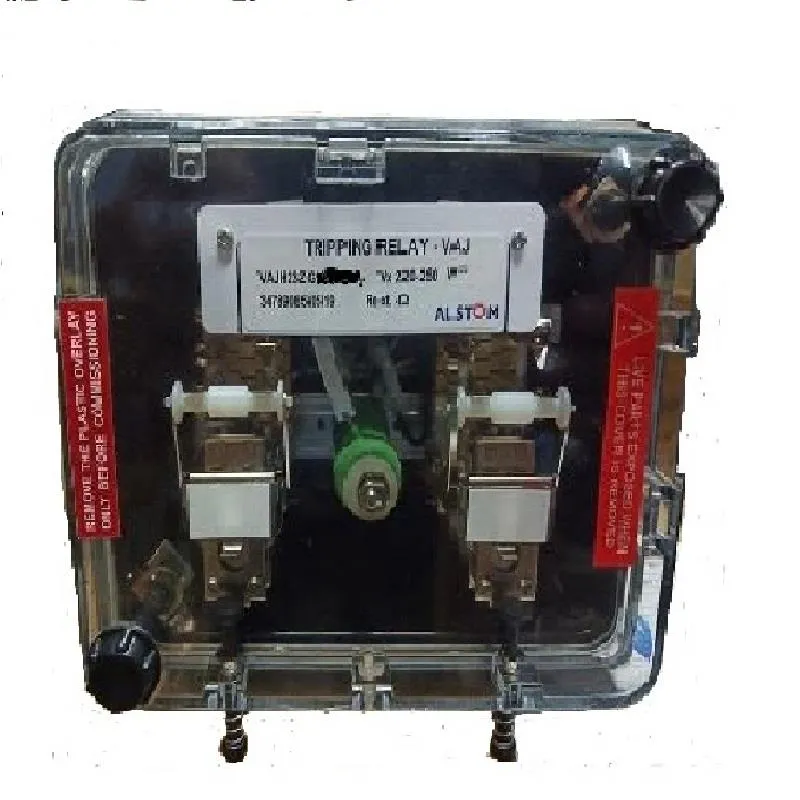

* The original products may vary from the picture
Alstom Tripping relays VAJH23ZG1004BBA
Visit the GE VERNOVA - ALSTOM Store
SKU : alstom-vajh23ZG1004BBA
Mfr Part No. : VAJH23ZG1004BBA
HSN Code : 8536
| GBVAJH23ZG1004BBA |
| HAND RESET TRIPPING RELAY |
| Technical specification: |
| Relay model no. - VAJH23ZG1004BBA |
| Relay type - VAJH23 |
| Aux. current or voltage - 220 - 250V DC |
| Burden - High |
| Case size - 1/2N H 20T |
| Contacts L.H.Unit - 2 N/O 2 N/C |
| Contacts R.H.Unit - 2 N/O 2 N/C |
| Total output contacts - 4 N/O 4 N/C H/R |
| Flag - Yes |
| Mounting - Flush |
| Note:-Resistor'R1'1 off and 'R2' |
| 1off to be connected in parallel. |
| Name plate-1 - RFB9070 004 |
| Outline drawing - MFM017 |
| Wiring diagram - 01VAJH23ZG 002 |
| Cut Out Dimension(in mm)-(H X W X D) - 116x145x130 |
