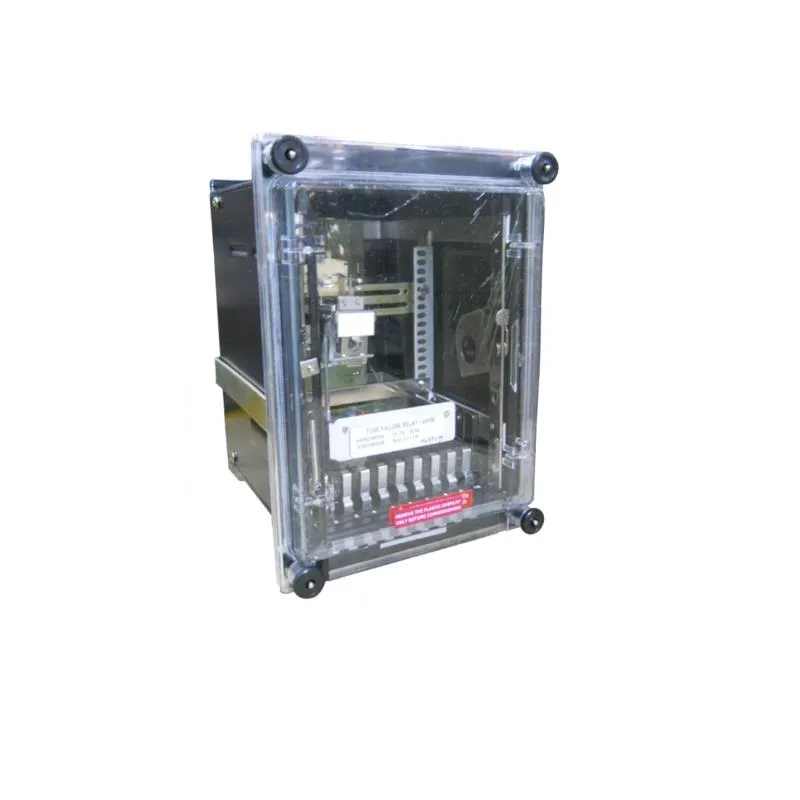

GBVAGM22AF171G
INST. VOLTAGE RELAY WITH ADJ. SETTING
| Technical Specifications | |
| Model No : | VAGM22AF171G |
| Relay type | VAGM22 |
| APPLICATION | U/V |
| O/C OR O/V SETTING | NOT APPLICABLE |
| EXTERNAL TRANSFORMER | NOT REQUIRED |
| CASE SIZE | 1D V 10T |
| CONTACTS (S/R OR H/R) | 1 N/O 2 N/C S/R |
| V.T/P.T SECONDARY | 110V AC |
| FLAG | REVERSE FOR U/V |
| MOUNTING | FLUSH |
| FREQUENCY | 50 HZ |
| Name Plate | RZF9134-601 |
| Outline Diagram | MFJ012 |
| Wiring Diagram | MADZ602.15-2 |
Electro Mechanical Relay
Voltage Protection relay(Under/Over Voltage)
