GBVAJH23ZG0752BBA |

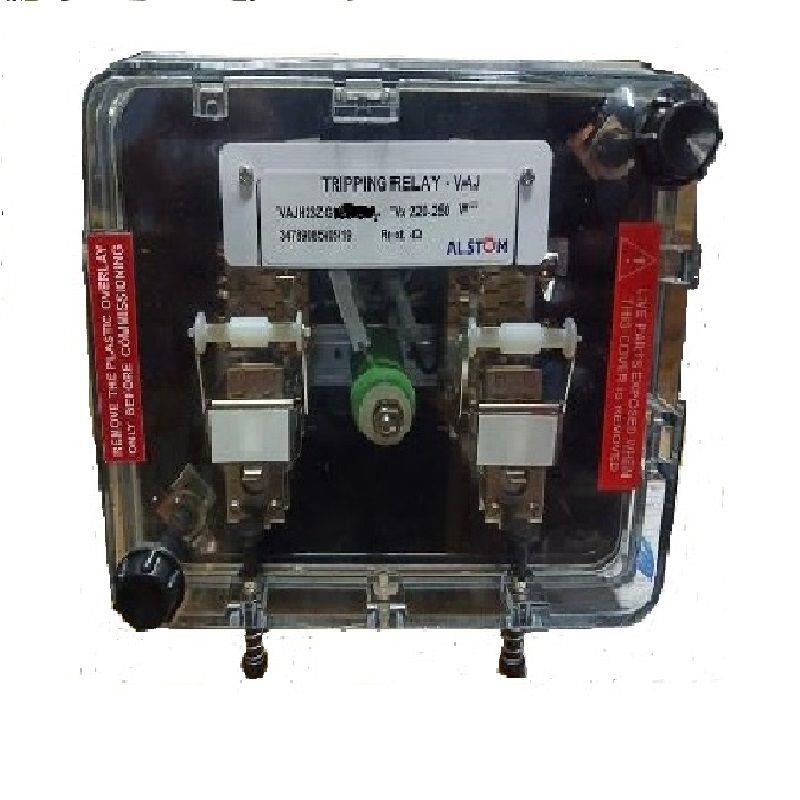

2 ELEMENT VOL. OP HIGH SPEED TRIP RELAY |
Technical Specification: |
Relay Model No - VAJH23ZG0752BBA |
Relay type - VAJH 23 |
Case size - 1/2N H 20T |
Aux.current or voltage - 110 - 125 V DC |
Contacts L.H Unit - 3 N/O 1 N/C |
Contacts R.H Unit - 3 N/O 1 N/C |
Total output contacts - 6 N/O 2 N/C H/R |
Burden - High |
Flag - Yes |
Note:-Resistor `R1' 1 off and `R2' |
1 off to be connected in parrallel |
Mounting - Flush |
Name Plate - RFB9070 004 |
Outline Diagram - RFG0031 SHT.3A |
Wiring Diagram - 01VAJH23ZG 002 |
Cut Out Dimension(in mm)-(H X W X D) - 116x145x130 |
Electro Mechanical Relay
Tripping relays
