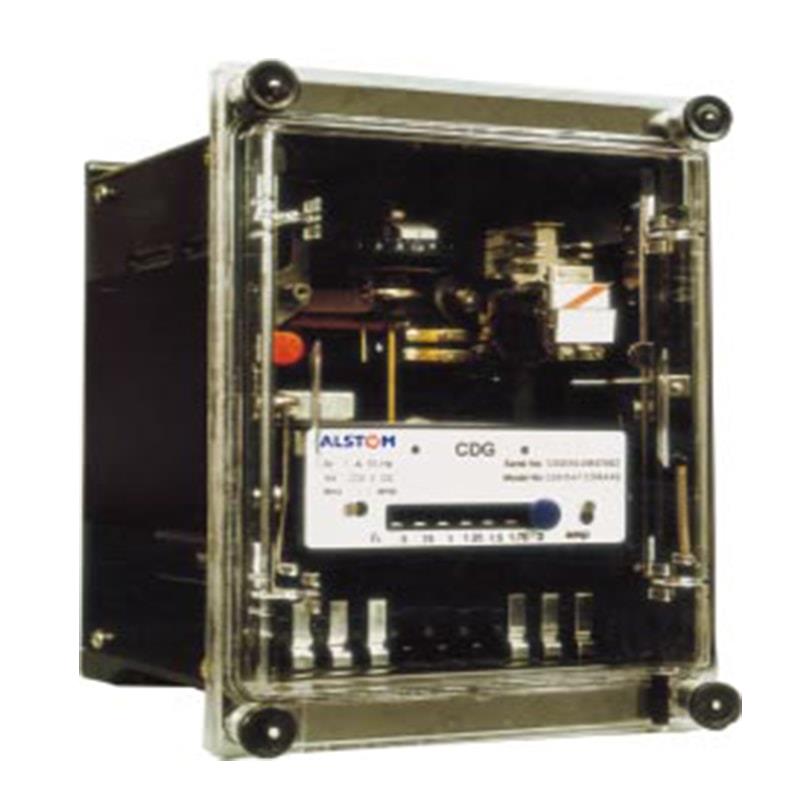

GBCDG11AF006SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL
| Technical Specifications | |
| Model No : | CDG11AF006SACH |
| Relay type | CDG11 |
| CASE SIZE | 1D V 10T |
| APPLICATION | E/F |
| BURDEN / D.M.T | 3VA / 3 SECS. |
| CONTACTS (S/R OR H/R) | 2 N/O S/R |
| E/F OR U/V SETTING | 0.1 - 0.4 Amps. |
| MOUNTING | FLUSH |
| C.T. SECONDARY | 1 AMP CT |
| O/C OR O/V SETTING | NOT APPLICABLE |
| FLAG | YES |
| Name Plate | RFG9126 |
| Outline Diagram | MFJ012 |
| Wiring Diagram | MADZ802.63-1 |
|
Cut out Dimension (in mm.) (H x W x D) |
222 X 150 X 203 |
Electro Mechanical Relay
Over current & Earth fault Protection(IDMT Relay)
